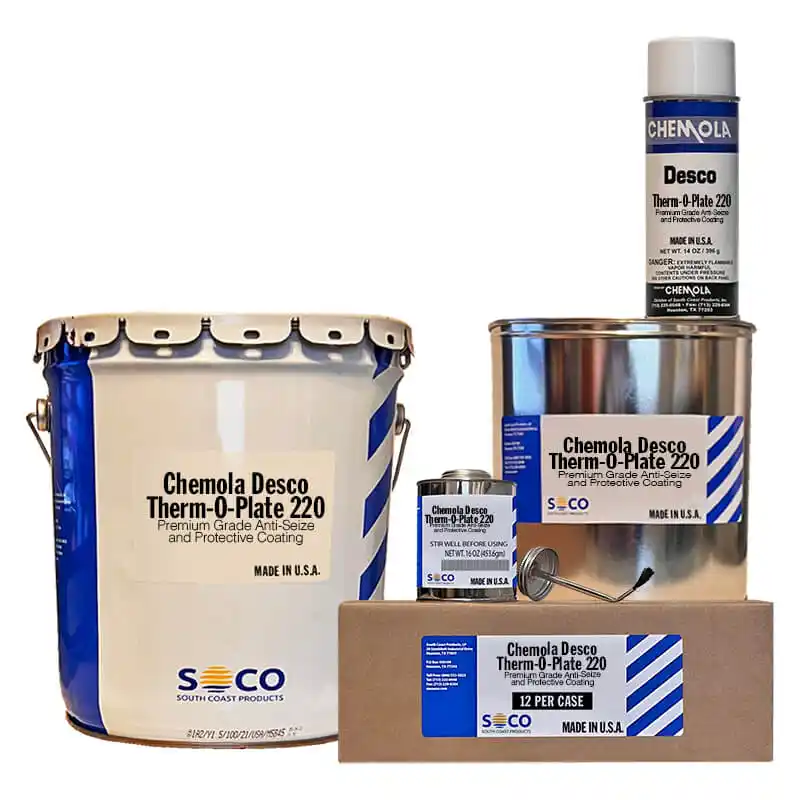

Chemola™ Desco Therm-O-Plate 220 plates onto metal surfaces to withstand heat, pressure and wear in corrosive environments. Chemola™ Desco Therm-O-Plate 220 is water repellent, chemically resistant and non-gumming. It features a synthetic, water-resistant base that will decompose at extreme temperatures, providing dry film lubrication.
Chemola™ Desco Therm-O-Plate 220 may be used on heavy, slow-speed slide applications. It is outstanding for journal and loose-tolerance bearings, but is not recommended for use with close-tolerance bearings where binding could occur due to plating on the metal surfaces. The bearings should not be over- packed as Chemola™ Desco Therm-O-Plate 220 works best as a thin film lubricant.
Office: +1 281-606-0798
Cell: +1 281-661-0512
| Item Number | Unit Size | Quantity |
|---|---|---|
| 0804006BT | 8 oz B/T | 12 per case |
| 0804012BT | 16 oz B/T | 12 per case |
| 0804012AE | 12 oz | 12 per case |
| 0804008QB | 8 lb can | |
| 0804035WMS | 35 lb metal pail | |
| 0804110KG | 110 lb keg | |
| 0804385DR | 385 lb drum |
| Appearance | Silver, smooth |
|---|---|
| NLGI | 0 |
| Penetration (ASTM D217) | 345-370 |
| Worked Penetration, 60x (ASTM D217) | 345-370 |
| Base Oil | Synthetic hydrocarbon |
| Base Oil Viscosity | 230 cSt at 40°C |
| Base Oil Viscosity | 22 cSt at 100°C |
| Base Oil Viscosity Index | 116 |
| Base Oil Pour Point | -22°F (-30°C) |
| Thickener | Inorganic |
| Additives | Dry film lubricants |
| Specific Gravity | 1.0 |
| Density (lb/gal) | 8.1 |
| Dropping Point (ASTM D566) | >500°F (260°C) |
| Flash Point | 248°F (120°C) |
| Temperature Range | -40°F to 2200°F (-40°C to 1200°C) |
| Four-ball EP Weld Point (ASTM D2596) | 160 kgf |
